Lab 09 - Application Gateway for Containers (AGC) with WAF¶

Objectives¶

By the end of this lab you will be able to:

• Explain what Application Gateway for Containers (AGC) is and how it differs from the traditional Application Gateway.
• Navigate AGC resources in the Azure portal.
• Understand how the ALB Controller in AKS manages AGC.
• Define WAF policies as Kubernetes Custom Resource Definitions (CRDs).
• Deploy a sample application on AKS and protect it with a WAF policy through AGC.
• Compare AGC with the traditional Application Gateway and Azure Front Door.

Section 1 – Introduction to Application Gateway for Containers¶

Application Gateway for Containers (AGC) is Microsoft's next-generation application load-balancing solution designed specifically for Kubernetes workloads running on Azure Kubernetes Service (AKS). It supersedes the Application Gateway Ingress Controller (AGIC) add-on model by providing:

How AGC Works¶

1. The ALB Controller is deployed as a pod inside AKS.
2. It watches for Gateway API resources (Gateway, HTTPRoute, GRPCRoute).
3. When a Gateway resource is created, the ALB Controller provisions or updates the AGC frontend in Azure.
4. When an HTTPRoute is created, the ALB Controller programs routing rules and back-end targets on the AGC data plane.
5. WAF policies can be referenced in the Gateway resource so that all traffic passing through that frontend is inspected.

Section 2 – Explore AGC Resources in the Portal¶

1. Sign in to the Azure portal.

2. In the portal search bar, type Application Gateways for Containers and select the service.

3. Click the AGC resource in your resource group (e.g., waf-workshop-agc).

4. Examine the following blades:

1. Click Frontends → select the frontend → note the FQDN (e.g., fe-xxxxxxxx.<region>.fga.alb.azure.com). You will use this later to test traffic.

2. Navigate back to the resource group and confirm the following companion resources exist:

3. Managed identity used by the ALB Controller.

4. WAF policy linked to the AGC frontend (if pre-deployed).

Section 3 – AGC Architecture Overview¶

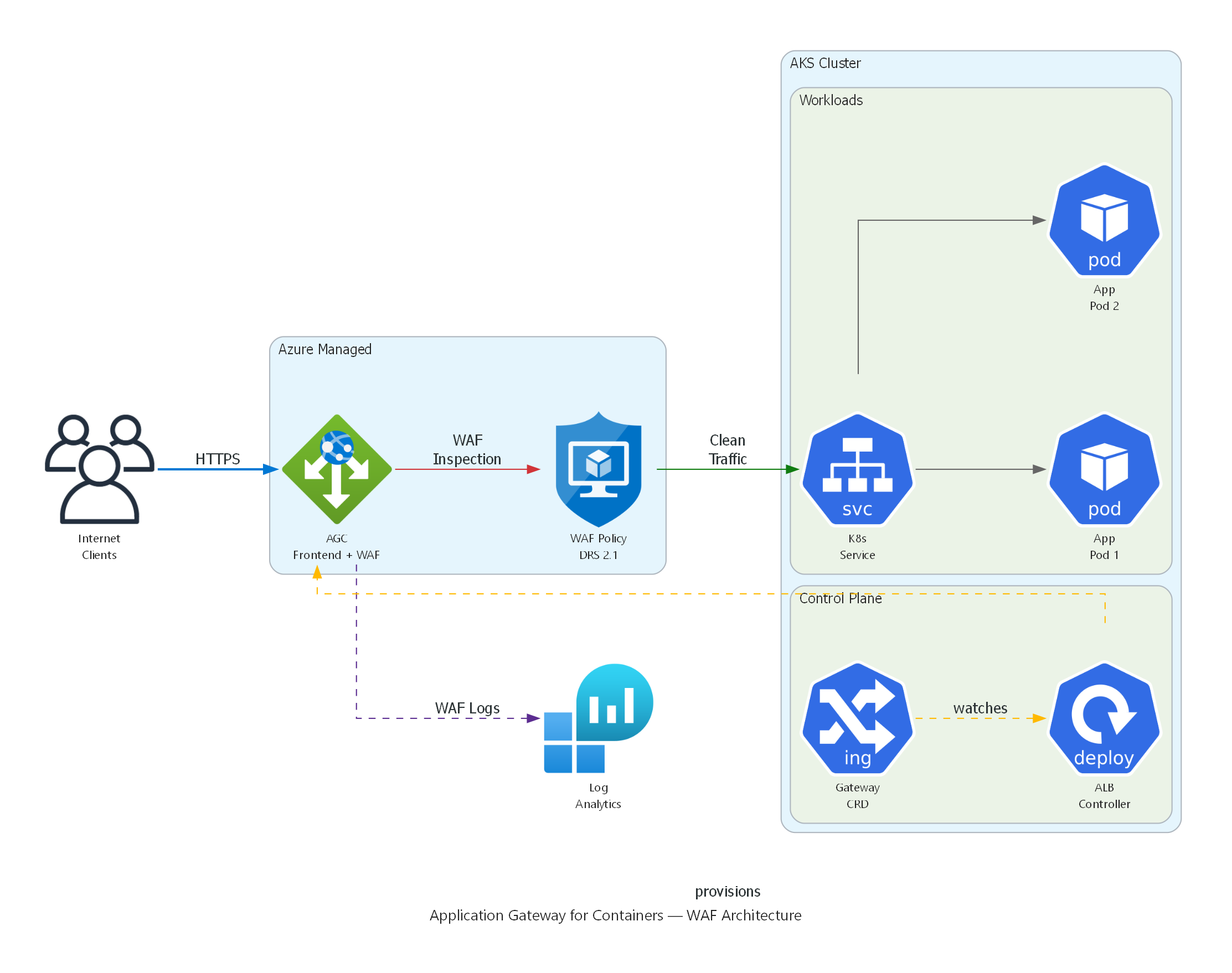

Application Gateway for Containers with WAF: Internet traffic flows through the AGC Frontend where the WAF Policy (DRS 2.1) inspects requests. Clean traffic is routed to Kubernetes Services and Pods. The ALB Controller in the AKS control plane watches Gateway API CRDs and provisions the AGC automatically. WAF logs flow to Log Analytics.

Key Components¶

Section 4 – WAF Policy as a Kubernetes CRD¶

With AGC, WAF policies are referenced directly in the Gateway API resources using annotations or policy references. This enables a GitOps-friendly workflow — security policies live alongside application manifests.

4.1 – Example Gateway Resource with WAF Policy¶

# gateway.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: waf-demo-gateway
  namespace: waf-demo
  annotations:
    alb.networking.azure.io/alb-id: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.ServiceNetworking/trafficControllers/<AGC_NAME>
spec:
  gatewayClassName: azure-alb-external
  listeners:
    - name: http-listener
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: Same
  # WAF policy reference via infrastructure annotation
  infrastructure:
    annotations:
      alb.networking.azure.io/alb-frontend-waf-policy: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Network/ApplicationGatewayWebApplicationFirewallPolicies/<WAF_POLICY_NAME>

Key point: The alb.networking.azure.io/alb-frontend-waf-policy annotation links the Azure WAF policy to the AGC frontend created by this Gateway.

4.2 – Example HTTPRoute Resource¶

# httproute.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: waf-demo-route
  namespace: waf-demo
spec:
  parentRefs:
    - name: waf-demo-gateway
      namespace: waf-demo
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: waf-demo-service
          port: 80

4.3 – Example WAF Policy (ARM / Bicep Reference)¶

The WAF policy itself is still an Azure resource. Below is a minimal Bicep snippet that creates a WAF policy suitable for AGC:

resource wafPolicy 'Microsoft.Network/ApplicationGatewayWebApplicationFirewallPolicies@2023-11-01' = {
  name: 'agc-waf-policy'
  location: resourceGroup().location
  properties: {
    policySettings: {
      requestBodyCheck: true
      maxRequestBodySizeInKb: 128
      fileUploadLimitInMb: 100
      state: 'Enabled'
      mode: 'Prevention'
    }
    managedRules: {
      managedRuleSets: [
        {
          ruleSetType: 'Microsoft_DefaultRuleSet'
          ruleSetVersion: '2.1'
        }
        {
          ruleSetType: 'Microsoft_BotManagerRuleSet'
          ruleSetVersion: '1.1'
        }
      ]
    }
  }
}

Section 5 – Deploy a Sample App to AKS with WAF Protection¶

⚠️ OPTIONAL – Requires AKS Cluster

The following steps require a running AKS cluster with the ALB Controller installed. If you do not have an AKS cluster, review the YAML manifests below as reference material and proceed to Section 7.

5.1 – Connect to the AKS Cluster¶

# Set variables
RESOURCE_GROUP="waf-workshop-rg"
AKS_CLUSTER="waf-workshop-aks"

# Get AKS credentials
az aks get-credentials \
  --resource-group $RESOURCE_GROUP \
  --name $AKS_CLUSTER \
  --overwrite-existing

# Verify connectivity
kubectl get nodes

5.2 – Create the Namespace¶

kubectl create namespace waf-demo

5.3 – Deploy the Sample Application¶

Create a file named waf-demo-app.yaml:

# waf-demo-app.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: waf-demo-app
  namespace: waf-demo
  labels:
    app: waf-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: waf-demo
  template:
    metadata:
      labels:
        app: waf-demo
    spec:
      containers:
        - name: nginx
          image: mcr.microsoft.com/oss/nginx/nginx:1.25.4
          ports:
            - containerPort: 80
          resources:
            requests:
              cpu: 100m
              memory: 128Mi
            limits:
              cpu: 250m
              memory: 256Mi
---
apiVersion: v1
kind: Service
metadata:
  name: waf-demo-service
  namespace: waf-demo
spec:
  type: ClusterIP
  selector:
    app: waf-demo
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80

Apply the manifest:

kubectl apply -f waf-demo-app.yaml

5.4 – Create the Gateway Resource¶

Create a file named gateway.yaml using the template from Section 4.1. Replace the placeholders:

# Replace placeholders
SUBSCRIPTION_ID=$(az account show --query id -o tsv)
AGC_NAME="waf-workshop-agc"
WAF_POLICY_NAME="agc-waf-policy"

cat <<EOF > gateway.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: waf-demo-gateway
  namespace: waf-demo
  annotations:
    alb.networking.azure.io/alb-id: /subscriptions/${SUBSCRIPTION_ID}/resourceGroups/${RESOURCE_GROUP}/providers/Microsoft.ServiceNetworking/trafficControllers/${AGC_NAME}
spec:
  gatewayClassName: azure-alb-external
  listeners:
    - name: http-listener
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: Same
  infrastructure:
    annotations:
      alb.networking.azure.io/alb-frontend-waf-policy: /subscriptions/${SUBSCRIPTION_ID}/resourceGroups/${RESOURCE_GROUP}/providers/Microsoft.Network/ApplicationGatewayWebApplicationFirewallPolicies/${WAF_POLICY_NAME}
EOF

kubectl apply -f gateway.yaml

5.5 – Create the HTTPRoute¶

kubectl apply -f httproute.yaml   # Use the file from Section 4.2

5.6 – Verify the Deployment¶

# Check pods are running
kubectl get pods -n waf-demo

# Check gateway status
kubectl get gateway -n waf-demo

# Get the AGC frontend FQDN
AGC_FQDN=$(kubectl get gateway waf-demo-gateway -n waf-demo \
  -o jsonpath='{.status.addresses[0].value}')
echo "AGC Frontend: $AGC_FQDN"

# Test connectivity (may take 2-3 minutes for DNS propagation)
curl -s -o /dev/null -w "%{http_code}" http://$AGC_FQDN/

Expected output: 200

Section 6 – Test WAF Protection on AGC¶

⚠️ OPTIONAL – Requires AKS Cluster with AGC deployed (Section 5)

6.1 – Send Legitimate Traffic¶

# Normal request – should return 200
curl -s -o /dev/null -w "%{http_code}\n" http://$AGC_FQDN/

Expected: 200 OK

6.2 – Send SQL Injection Attack¶

# SQL injection in query string – should be blocked
curl -s -o /dev/null -w "%{http_code}\n" \
  "http://$AGC_FQDN/?id=1' OR '1'='1"

Expected: 403 Forbidden

6.3 – Send XSS Attack¶

# Cross-site scripting in query string – should be blocked
curl -s -o /dev/null -w "%{http_code}\n" \
  "http://$AGC_FQDN/?q=<script>alert('xss')</script>"

Expected: 403 Forbidden

6.4 – Send Path Traversal Attack¶

# Path traversal – should be blocked
curl -s -o /dev/null -w "%{http_code}\n" \
  "http://$AGC_FQDN/../../etc/passwd"

Expected: 403 Forbidden

6.5 – Send Command Injection Attack¶

# Command injection in header – should be blocked
curl -s -o /dev/null -w "%{http_code}\n" \
  -H "User-Agent: () { :; }; /bin/bash -c 'cat /etc/passwd'" \
  "http://$AGC_FQDN/"

Expected: 403 Forbidden

6.6 – Verify in WAF Logs¶

WAF logs for AGC flow to the same Log Analytics workspace. Query them with:

AzureDiagnostics
| where ResourceProvider == "MICROSOFT.SERVICENETWORKING"
| where Category == "TrafficControllerAccessLog"
| where properties_s contains "Blocked"
| project TimeGenerated, properties_s
| order by TimeGenerated desc
| take 20

Note: Log ingestion may take 5–10 minutes after the requests are sent.

Section 7 – AGC vs Traditional Application Gateway¶

Section 8 – AGC WAF Limitations¶

As of the current preview, AGC WAF has the following limitations:

Tip: Always check the official AGC WAF documentation for the latest supported features.

Section 9 – Key Takeaways¶

When to Use Each Service¶

Summary¶

• AGC is the future of application load balancing for Kubernetes on Azure — it provides seconds-level configuration, Gateway API support, and a fully managed data plane.
• WAF integration with AGC allows security policies to be managed as infrastructure-as-code alongside Kubernetes manifests.
• While AGC WAF is in preview, the traditional Application Gateway WAF v2 remains the GA choice for production workloads requiring full WAF feature parity.
• The Gateway API model used by AGC is the Kubernetes community standard, replacing the legacy Ingress API.

Clean Up (Optional)¶

If you deployed the sample app, remove the resources:

kubectl delete namespace waf-demo

Additional Resources¶

• Application Gateway for Containers documentation
• Gateway API specification
• ALB Controller for AKS
• WAF on AGC

End of Lab 09
